Bearings


bearings Bearing Products >

Ball Bearings

Miniature Thrust Ball Bearings
Pyc bearing is a specialized manufacturer of various miniature thrust bearing.The material of the washer of the miniature thrust ball bearings,developed by Shanghai PYC Bearing Manufacturing Co.,Ltd.is chrome steel or stainless steel.Also,there are some bearings with groove,and some are without.The materials of the cage are stainless steel and brass.

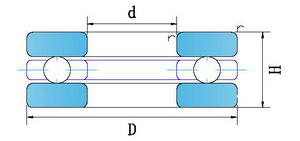

Type
d
D
d1
D1
H
Load RatingCr(N)

Load
Rating Cor(N)
Max. Speed
steel ball
rpm
Grease
Oil
piece
diameter
F3-8M
3
8
3.2
7.8
3.5
600
480
11000
15000
6
1.588
F4-9M
4
9
4.2
8.8
4
800
520
8000
12000
6
1.588
F4-10M
4
10
4.2
9.8
4
658
580
6000
10000
6
1.588
F5-10M
5
10
5.2
9.8
4
950
830
5100
8100
7
1.588
F5-11M
5
11
5.2
10.8
4.5
988
880
5000
8000
7
1.588
F5-12M
5
12
5.2
11.8
4
988
880
5000
8000
7
1.588
F6-12M
6
12
6.2
11.8
4.5
1600
1255
5000
7000
8
2
F6-14M
6
14
6.25
13.8
5
1800
1588
4000
7000
8
2.381
F7-13M
7
13
7.2
16.8
4.5
1422
1255
4000
7000
9
2
F7-15M
7
15
7.2
14.8
5
2200
2000
3600
7100
8
2.5
F7-17M
7
17
7.2
16.8
6
2600
2256
3500
7000
8
2.381
F8-16M
8
16
8.2
15.8
5
2500
3000
4000
8000
9
3
F8-19M
8
19
8.2
18.8
7
3452
3000
3000
5000
8
3.175
F9-20M
9
20
9.2
19.8
7
3356
2999
2500
4500
8
3.175
F10-18M
10
18
10.2
17.8
5.5
2230
2721
2500
4500
10
2.381

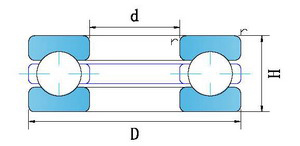

Type
d
D
d1
D1
H
Load RatingCr(N)
Load Rating Cor(N)
steel ball
piece
diameter
F2-6
2
6
2
6
3
117
83
6
1
F2X-7
2.5
7
2.5
7
3.5
156
117
6
1.2
F3-8
3
8
3.2
7.8
3.5
600
480
6
1.588
F4-9
4
9
4.2
8.8
4
800
520
6
1.588
F4-10
4
10
4.2
9.8
4
658
580
6
1.588
F5-11
5
11
5.2
10.8
4.5
988
880
7
1.588
F6-12
6
12
6.2
11.8
4.5
1600
1255
8
2
F7-15
7
15
7.2
14.8
5
2200
2000
8
2.5
F8-16
8
16
8.2
15.8
5
2500
3000
9
3
F9-17
9
17
9.2
16.8
5
578
627
10
2.381
F10-18
10
18
10.2
17.8
5.5
2230
2721
10
2.381
